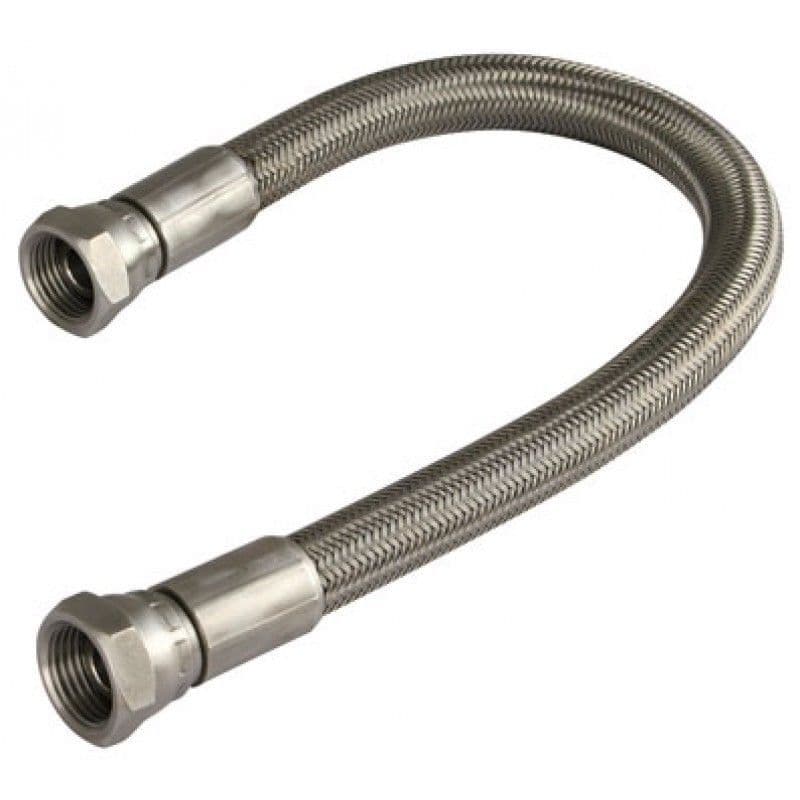

1/4" PTFE Convoluted Bore Stainless Steel Overbraided Hose Assembly

1/4 PTFE Convoluted Bore Stainless Steel Overbraided Hose Assembly

C/W 2 x 1/4 BSP SWIVEL FEMALE STRAIGHT HOSE FITTINGS (IN CARBON STEEL)
(IF YOU REQUIRE A DIFFERENT HOSE FITTING or HOSE LENGTH PLEASE CALL US ON 01274 731308)

SPECIFICATIONS
BORE SIZE: 1/4 BORE
MAX WORKING PRESSURE: 180 BAR
HOSE OD: 11.94mm
BEND RADIUS: 17.43mm

APPLICATIONS

Aggressive chemicals transfer systems – Compressed air and gases – High or low

temperature fluid or gas transfer

INNER TUBE

Polytetrafluoroethylene

REINFORCEMENT

One braid of stainless AISI 304 wire

COVER

N/A

FEATURES

Pure PTFE tube material, lightweight, resistant to almost all chemicals, gases and solvents.

Stainless steel braid / cover to support medium pressure requirements.

DESCRIPTION

Lightweight Convoluted hose for standard industrial use, especially for high or low

temperature and aggressive chemical applications, including some gases (there will be

a level of gas permeation which should be taken into account). Care should be taken to

ensure proper fitting and ferrule compatibility, we recommend to contact our sales office for

fittings selection.

Hose not suitable for continuous hydraulic impulse applications.

Above +130°C (+266°F) there will be a reduction in maximum working pressure: reduce

maximum working pressure by 1% for each 2°C (3,6°F) above 130°C (+266°F).

Hose suitability must be checked when discharge of electrical static build up is required.

SAFETY FACTOR

4:1

FIRE TEST

DIN 54837 with classification to DIN 5510-2 Convoluted PTFE
